EPM Series

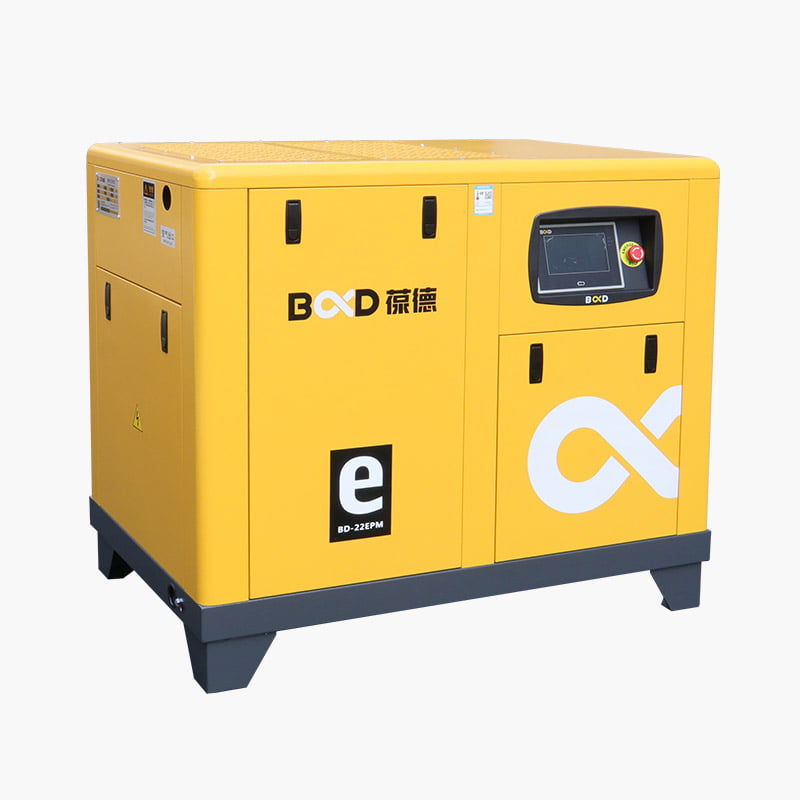

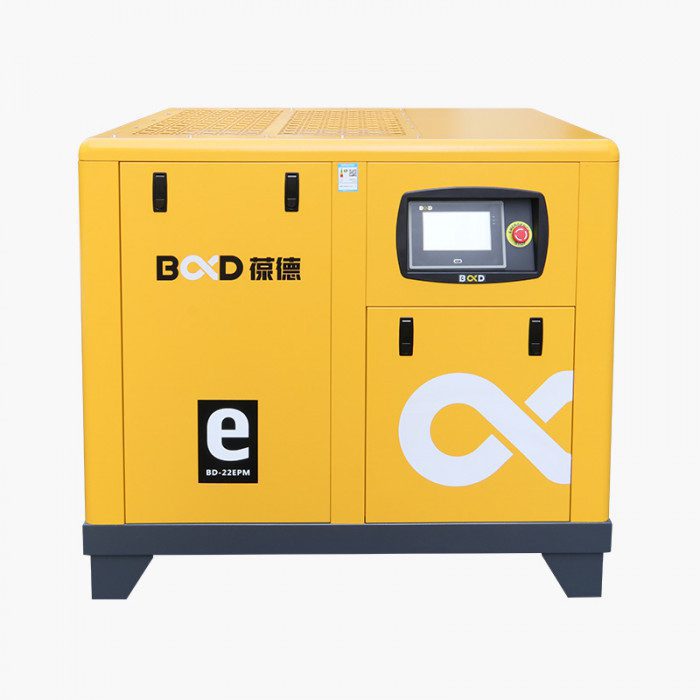

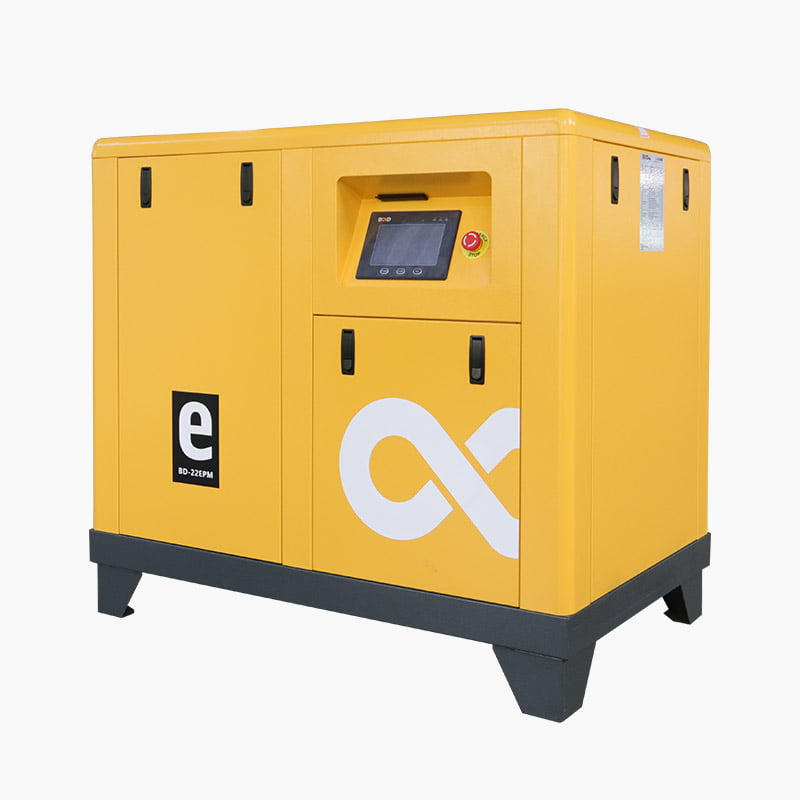

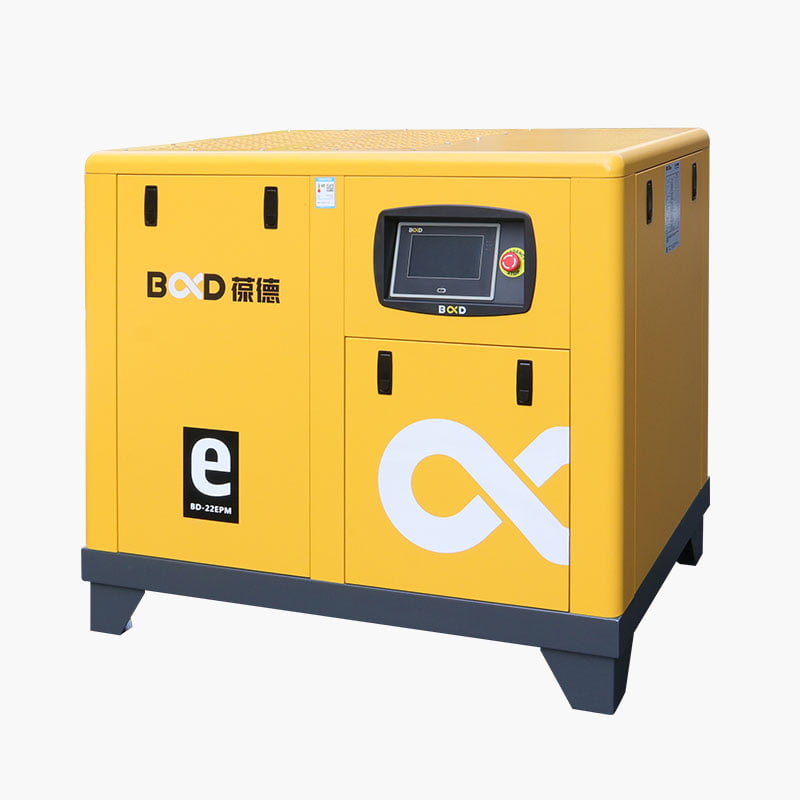

EPM Series PM VSD Screw Air Compressor
Exclusive design for assisting laser cutting machine;
Air compressor,air dryer,precision filters, and air tank all in one set.

Description

Advantages of PM VSD Screw Air Compressor(B&D brand)

1. FRONT MESH
Filter the air before come into compressor, which make good protection for air-end and compressor is more durable.

2. ONE-PIECE AIR END&MOTOR
Permanent magnet motor is a synchronous motor, uses Neodymium Boron material and never lose magnetism until 120℃. Stator coil is more durable as it’s wrapped by corona resistant enameled wire. PM motor is improved efficiency by 9%, surpassing asynchronous motor, and designed for 10 years reliable operation.

High efficiency Aluminum alloy Oil-cool motor
The applications of High efficiency Aluminum alloy Oil-cool motor in our air compressors are unique and first in this air compressor industry. With advantages of light-weight, fast-cooling, low noise(which can lower to 60-70dB(A)), our self-patented aluminum alloy oil-cooled motors dominate relevant product series(LS series, PM-TK series, EPM series) from average air compressors of competitors.

Air end connect with PM motor by one shaft without coupling or bearing.
Transmission rate reach 100%. If works with inverter, energy efficiency is improved as much as 6%.
Air end production line introduces Germany & Japan high precision rotor grinding machinery. Optimized rotor profile delivers more flow than capacity of similar parts therefore help minimize the operating expense.

3. VARIABLE SPEED DRIVE
Variable speed drive control speed of motor and decrease start current, make operation smoothly and quietly. The VSD(inverter) can save up to 35% on energy costs. For whole compressor, VSD together with efficient PM motor, this rate even reach 42%.

4. INTELLIGENT CONTROLLER
PLC controller helps you properly maintain air compressor. React automatically to key parameters to reduce unexpected downtime.
Monitor and adjust parameters on the touch screen panel and can send you message to your cell phone when operational events occur. So you can take immediate action, accessing compressor system from anywhere in the world only with a web-browser.

5. COOLING SYSTEM
Enlarged heat exchanger reduces significant thermal for improved durability.

6. SMART COMPRESSOR
A program lets you start/stop compressor at specific time. Fix the pressure at your own demand to maximize productivity and save energy.

7. LONG LIFE COMSUMABLE
Oil separation system remove all 3ppm oil from compressed air, protecting equipment system and minimize costs.

8. PRESSURE CONTROL
You can fix the pressure at your own demand within a certain range, compressor delivers airflow the same as needed and minimize energy consumption.

Model Power Pressure FAD Drive way Lubricant Noise Dimension Weight Outlet Pipe
kw bar m³/min litre dBA L(mm) Wmm) H(mm) kg inch
BD-7.5EPM 7.5 7-10 0.8-1.35 PM Variable Speed Synchronization 4 62±2 900 650 920 180 ZG½”
BD-11EPM 11 7-10 0.46-1.8 9 62±2 1020 710 1020 286 ZG1″
BD-15EPM 15 7-10 0.8-2.6 9 65±2 1250 800 1000 400 G1¼”
BD-22EPM 22 7-10 1.0-3.8 16 65±2 1250 800 1000 450 G1¼”
BD-30EPM 30 7-10 1.3-5.2 20 65±2 1450 900 1250 580 G1½”
BD-37EPM 37 7-10 1.9-6.8 20 65±2 1450 900 1250 610 G1½”
BD-45EPM 45 7-10 2.3-8.4 30 65±2 1600 1150 1370 900 G2″
BD-55EPM 55 7-10 3.0-11.0 30 68±2 1600 1150 1370 930 G2″
BD-75EPM 75 7-10 4.5-15.0 50 68±2 1800 1250 1550 1080 G2″
BD-90EPM 90 7-10 5.0-16.8 50 68±2 1900 1250 1650 1280 G2″
BD-110EPM 110 7-10 6.5-21.5 72 75±2 2200 1550 1800 2880 DN80
BD-132EPM 132 7-10 7.6-25.3 72 75±2 2200 1550 1800 3080 DN80
BD-160EPM 160 7-10 8.9-29.7 112 75±2 3184 1884 1740 3900 DN100
BD-185EPM 185 7-10 10.1-33.6 112 75±2 3184 2032 2000 4200 DN100
BD-220EPM 220 7-10 12.1-40.4 120 78±2 3420 2020 1900 4600 DN125
BD-250EPM 250 7-10 13.8-46 120 78±2 3420 2020 1900 5000 DN125
