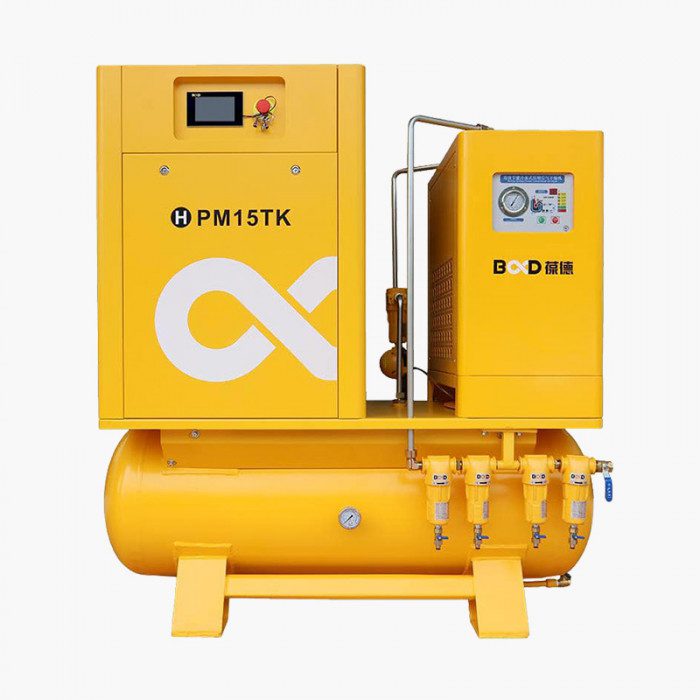

TK Series All-in-one Screw Air Compressor
Custom-designed for assisting laser cutting machine;
Air compressor, air dryer, precision filters, and air tank all in one set.
TK Series
Description
TK Series All-in-one Screw Air Compressor
Integrated compressed air system includes screw compressor, refrigerated air dryer, tank
Simple structure and less connection
Easy to install and use conveniently
|
Model |
PM7.5TK | PM11TK | PM15TK | PM22TK | |
| Power(kw) | 7.5 | 11 | 15 | 22 | |
| FAD(m³/min) | Pressure(bar) | 0.36-1.27 | 0.46-1.8 | 0.8-2.6 | 1.0-3.55 |
| 7-10 | |||||
| Ambient temp | -5~+45℃ | ||||
| Cooling Way | air cooling or water cooling | ||||
| Discharge temp | air cooling(ambient temperature±10℃) water cooling(＜40℃) | ||||
| Electricity | 380v/3ph/50hz | ||||
| Starting Method | VSD soft start | ||||
| Drive way | direct drive | ||||
| Lubricant(Litre) | 6 | 10 | 12 | 18 | |
| Noise(dBA) | 65±2 | 65±2 | 67±2 | 67±2 | |
| Length(mm) | 1300 | 1300 | 1600 | 1600 | |
| Width(mm) | 625 | 625 | 750 | 750 | |
| Height(mm) | 1410 | 1410 | 1600 | 1600 | |
| Weight(kg) | 450 | 450 | 500 | 700 | |
| Outlet Pipe Dia(inch) | ½” | 1″ | 1″ | 1¼” | |
| MODEL | POWER | VOLTAGE/ FREQUENCY/ PHASE |
PRESSURE | FAD | DRIVEWAY | Tank Volume | NOISE | MEASUREMENT | WEIGHT | Outlet Pipe | ||
| kw | bar | m³/min | litre | dBA | L(mm) | Wmm) | H(mm) | kg | inch | |||
| PM7.5TK | 7.5 | 7-10 | 0.36-1.27 | direct drive | 150 | 65±2 | 1300 | 625 | 1410 | 450 | ½” | |
| PM11TK | 11 | 7-10 | 0.46-1.8 | direct drive | 300 | 65±2 | 1300 | 625 | 1410 | 450 | 1″ | |
| PM15TK | 15 | 7-10 | 0.8-2.6 | direct drive | 300 | 67±2 | 1600 | 750 | 1600 | 500 | 1″ | |
| PM22TK | 22 | 7-10 | 1.0-3.55 | direct drive | 400 | 67±2 | 1600 | 750 | 1600 | 700 | 1¼” | |
| PM11TK | 11 | 16 | 0.97 | direct drive | 300 | 65±2 | 1300 | 625 | 1410 | 450 | 1″ | |
| PM15TK | 15 | 16 | 1.27 | direct drive | 300 | 67±2 | 1600 | 750 | 1600 | 500 | 1″ | |
| PM18TK | 18.5 | 16 | 1.80 | direct drive | 400 | 67±2 | 1600 | 750 | 1600 | 600 | 1″ | |
| PM22TK | 22 | 16 | 2.30 | direct drive | 400 | 67±2 | 1600 | 750 | 1600 | 700 | 1″ | |
| PM22TK | 22 | 25 | 1.23 | direct drive | 400 | 67±2 | 1600 | 750 | 1600 | 700 | 1″ | |
