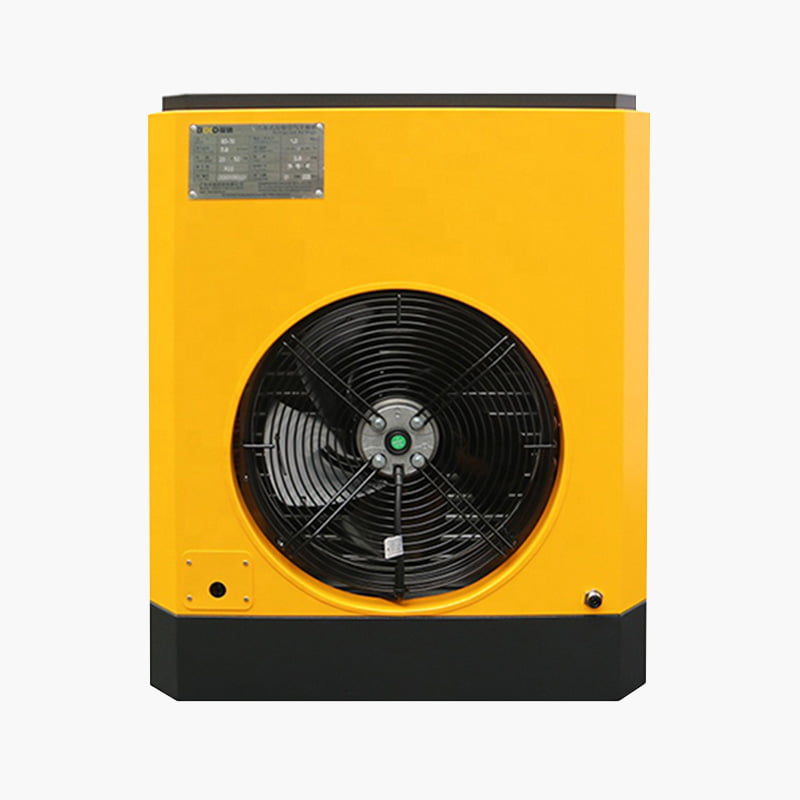

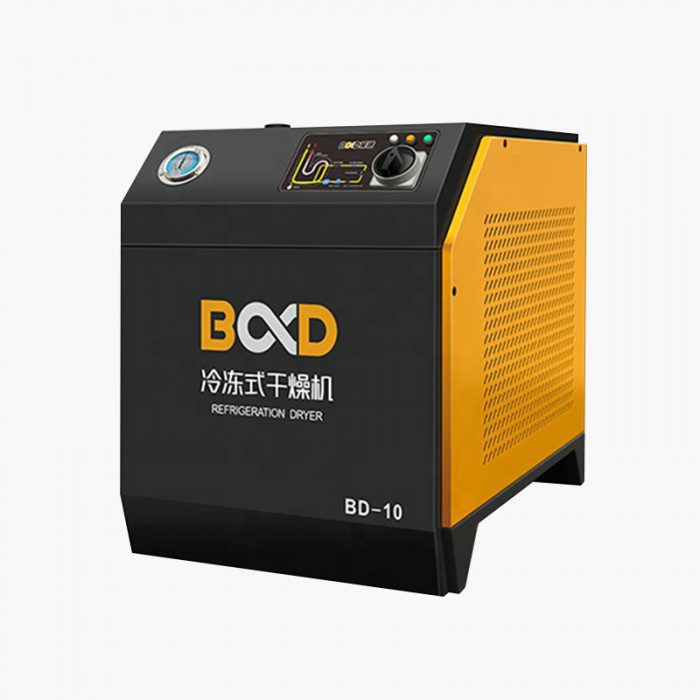

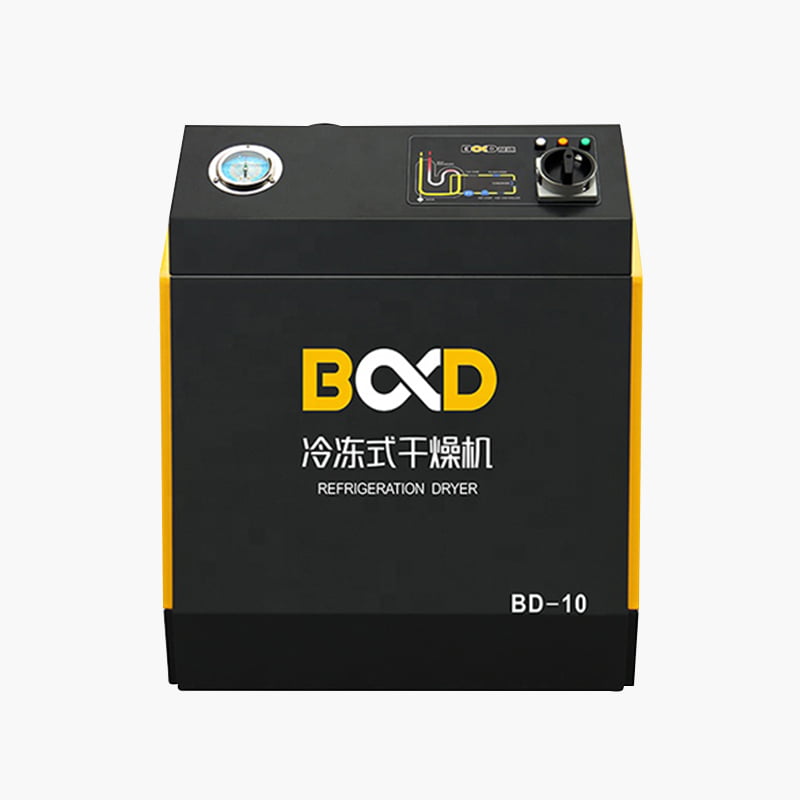

Refrigerated Air Dryer
Perfectly matched for relevant air compressors for further compressed processing.
Refrigerated Air Dryer
Description
Refrigerated Air Dryer
Compressed air is full of steam which damages not only air system but also final products. It’s estimated that there would be 90L water in the compressed air, the refrigerated dryer can help get rid of 99% water to dry your compressed air.
B&D Refrigerated Dryer Advantage
Use the Panasonic pump with two condensing to ensure outlet dew point +2~+10℃
Stable, less noise, long lifespan
The two-stage efficient separator can eliminate 99% water and avoid secondary evaporation
Equipped automatic drainer discharge water out of the dryer without leaking air
The large evaporator can handle high volume

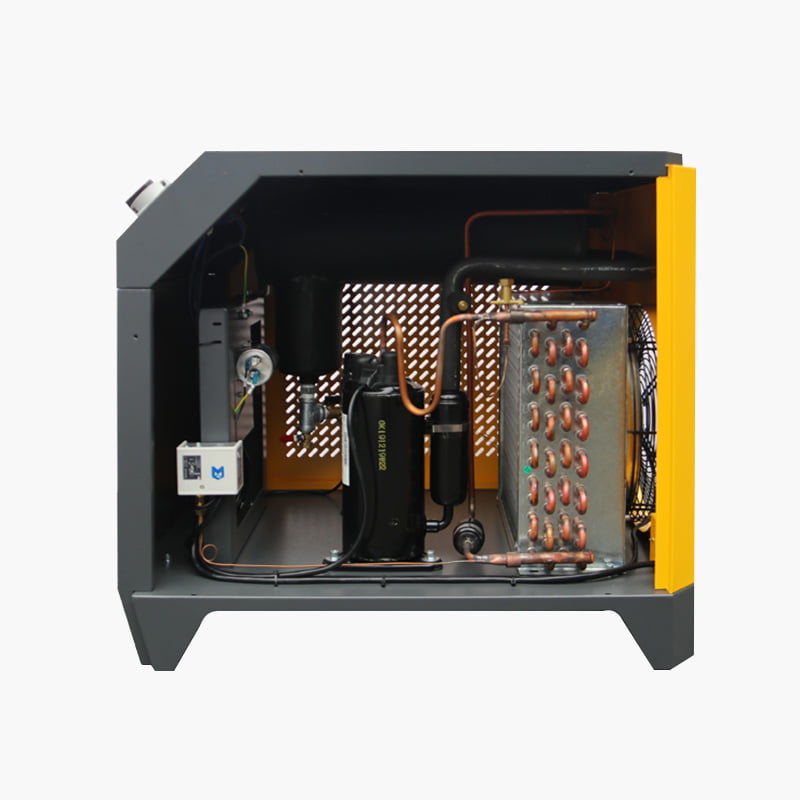

Condenser uses superior copper tube with high heat transfer
Electrical automatic control
| MODEL | PROCESS AIR VOLUME (m3/min) |
REFRIGERANT | VOLTAGE/ FREQUENCY/ PHASE |
POWER | LENGTH (mm) |
WIDTH (mm) |
HEIGHT (mm) |
WEIGHT (kg) |
INLET/ OUTLET |
| BD-10 | 1.8 | R22/R134A | 220V/50HZ/60HZ/1P | 0.25HP | 620 | 500 | 630 | 51 | G ¾ |
| BD-20 | 2.8 | R22/R134A | 220V/50HZ/60HZ/1P | 0.5HP | 620 | 500 | 630 | 60 | G ¾ |
| BD-30 | 3.5 | R22/R134A | 220V/50HZ/60HZ/1P | 0.75HP | 750 | 550 | 670 | 63 | G1/G1½ |
| BD-40 | 5.5 | R22/R134A | 220V/50HZ/60HZ/1P | 1.25HP | 960 | 550 | 710 | 90 | G1½ |
| BD-60 | 6.88 | R22/R134A | 220V/50HZ/60HZ/1P | 1.5HP | 1040 | 640 | 830 | 95 | G1½ |
| BD-80 | 8.8 | R22/R134A | 220V/50HZ/60HZ/1P | 2HP | 1040 | 640 | 840 | 130 | G2 |
| BD-100 | 11.5 | R22/R134A | 220V/50HZ/60HZ/1P | 2HP | 700 | 1000 | 1000 | 135 | G2 |
| BD-130 | 13 | R22/R134A | 220V/50HZ/60HZ/1P | 2.5HP | 700 | 1000 | 1000 | 160 | DN65 |
| BD-160 | 16 | R22/R134A | 380V/50HZ/3P | 3HP | 700 | 1000 | 1000 | 165 | DN80 |
| BD-200 | 21.5 | R22/R134A | 380V/50HZ/3P | 5HP | 700 | 1400 | 1160 | 250 | DN80 |
| BD-240 | 24 | R22/R134A | 380V/50HZ/3P | 6HP | 700 | 1400 | 1160 | 300 | DN80 |
| BD-300 | 30 | R22/R134A | 380V/50HZ/3P | 7.5HP | 1800 | 1000 | 1360 | 400 | DN100 |
| BD-400 | 40.5 | R22/R134A | 380V/50HZ/3P | 8HP | 2000 | 1000 | 1360 | 500 | DN125 |
| BD-450 | 46 | R22/R134A | 380V/50HZ/3P | 10HP | 2000 | 1000 | 1360 | 500 | DN125 |
| BD-500 | 50 | R22/R134A | 380V/50HZ/3P | 10HP | 2200 | 1100 | 1480 | 600 | DN150 |
Inlet temperature ≤80℃
Dew point 2-10℃
Working pressure 7-13bar
Ambient temperature ≤35℃
Cool way: by air
Pressure loss ≤0.025Mpa
Electric drainage valve
