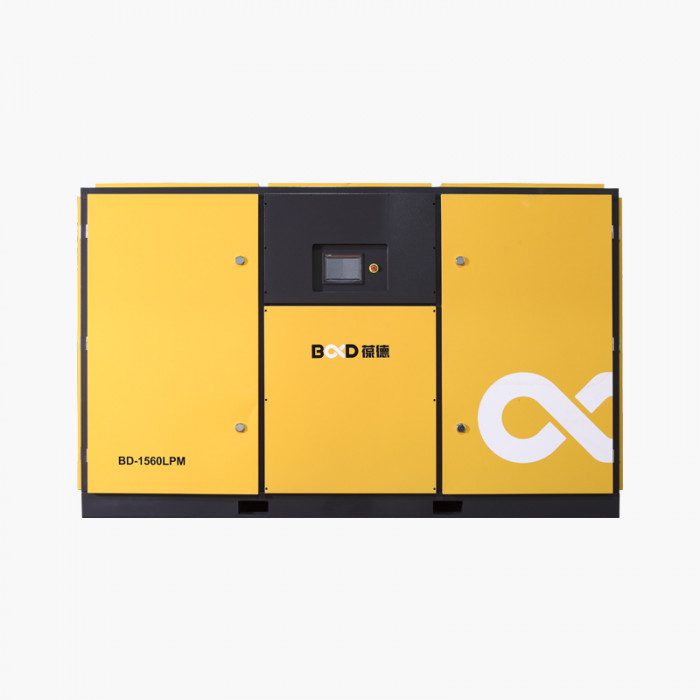

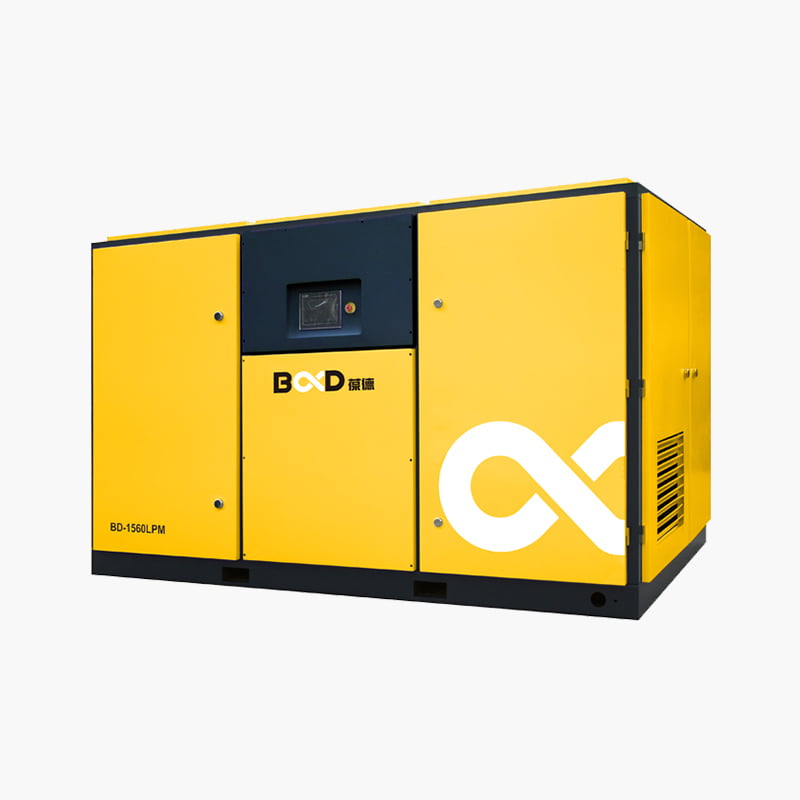

LPM Series VSD Low-Pressure Screw Air Compressor

LPM Series VSD Low-Pressure Screw Air Compressor

Low rotating speed while keeping up a good free airflow volume for making sure no energy consumption waste in long-term operation.

Description

LPM series VSD Low Pressure Screw Air Compressor

  • Customizedefficient air-end with big screwing capacity because permanent magnet motor operate in higher efficiency than normal 3 phase asynchronous motor;
  • VSD technology save energy obviously at the range of 3 bar to 5bar
  • Self-patentsand won thousand projects in Chinese manufacturing, which help cutting energy cost abundantly
  • Industrial house keeper B&D Cloud(IoT) helps remotely control
  • Refine design in low rotating speed to reduce energyconsumption

B&D cooperate with top supplier and use superior spare parts to ensure air compressor continuously running. Fault alarms and self-detect system is at industrial cutting edge.
If a target pressure is 0.2-0.5Mpa, if use 0.8Mpa air compressor, it will require a pressure reducer, which is a waste of power in producing higher pressure for you still need to lower it down. B&D PM VSD low pressure air compressors helps cutting 20%-45% energy cost, as you don’t need to “reduce” an extra air pressure.
With original easy management mode and touch screen display, the whole remote control system gets the first patent in industry which can achieve remotely monitoring, revising parameter, giving out automatically alarms and maintenance alarms.
Whole air compressor system is more environmental friendly for accuracy of pressure control inside compression element(air-end), stable air delivery at fixed pressure, oil content ≤2ppm and creatively noise-decreasing technology.

Model BD-390LPM/3 BD-390LPM/5 BD-600LPM/3 BD-600LPM/5 BD-750LPM/3 BD-750LPM/5 BD-1100LPM/3 BD-1100PM/5 BD-1560LPM/3 BD-1560LPM/5
Power(kw) 37 45 55 75 75 90 110 132 132 160
Pressure(bar) 3 5 3 5 3 5 3 5 3 5
FAD(m³/min) 11.5 11.5 18.5 18.5 25.5 22.5 35.7 31.2 44.2 40.5
Ambient temp -5~+45
Cooling Way Air Cooling or Water Cooling
Discharte temp air cooling(ambient temperature±10) water cooling(40)
Electricity 220v/380v/415v/460v/50hz/60hz
Starting Method Inverter Start
Drive way Direct Drive
Lubricant(Litre) 72 72 120 120 120 120 150 150 208 208
Noise(dBA) 66±2 68±2 68±2 68±2 75±2 75±2 77±2 77±2 78±2 78±2
Length(mm) 1250 1250 1450 1450 1600 1600 1800 1900 2200 2200
Width(mm) 800 800 900 900 1150 1150 1250 1250 1550 1550
Height(mm) 1000 1000 1250 1250 1370 1370 1550 1650 1800 1800
Weight(kg) 400 450 580 610 900 930 1080 1280 2880 3080
Outlet Pipe Dia(inch) G1¼” G1¼” G1½” G1½” G2″ G2″ G2″ G2″ DN80 DN80
